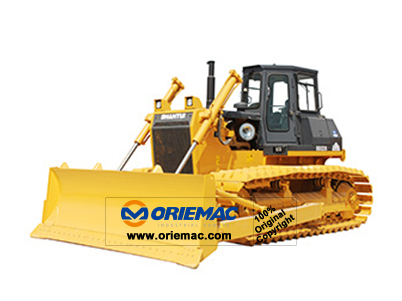

Quick Details Feature: Bulldozer Condition: New Application: Construction Brand Name: SHANTUI Model Number: SD22S Certification: ISO,CE Rated Loading Capacity: 2.57t Bucket Capacity: 6.8m3 Dimension: 6060*4365*3782mm Max. Lifting Load: 2.57t Engine: WD12G240E206 / NT855-C280S10 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SD22S Overall length mm 6060 Overall width mm 4365 Overall height mm 3782 Ground contact length of track mm 3480 Track shoe width mm 910 Weight Total weight kg 25700 Power Engine model WD12G240E206 / NT855-C280S10 Engine rated power kW 162 Engine rated speed r/min 1800 Travel Travel speed 1st (forward/backward) km/h 0-3.6/0-4.3 Travel speed 2st (forward/backward) km/h 0-6.5/0-7.7 Main performance Operation weight t 25.7 Blade capacity m3 6.8 Gradeability 0 30 Ground pressure kpa 0.041 Shovel blade width m 3.725 Shovel blade height m 1.885 Max. hoisting height m 1.33 Max. digging depth m 0.55 Max. gradient m ＞0.735 Track gauge m 2.25 Caterpillar track pitch m 0.216 Min. swing radius m 3.3 Min. ground clearance m 0.405
Feature: Bulldozer
Condition: New
Application: Construction
Brand Name: SHANTUI
Model Number: SD22S
Certification: ISO,CE
Rated Loading Capacity: 2.57t
Bucket Capacity: 6.8m3
Dimension: 6060*4365*3782mm
Max. Lifting Load: 2.57t
Engine: WD12G240E206 / NT855-C280S10
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit SD22S Overall length mm 6060 Overall width mm 4365 Overall height mm 3782 Ground contact length of track mm 3480 Track shoe width mm 910 Weight Total weight kg 25700 Power Engine model WD12G240E206 / NT855-C280S10 Engine rated power kW 162 Engine rated speed r/min 1800 Travel Travel speed 1st (forward/backward) km/h 0-3.6/0-4.3 Travel speed 2st (forward/backward) km/h 0-6.5/0-7.7 Main performance Operation weight t 25.7 Blade capacity m3 6.8 Gradeability 0 30 Ground pressure kpa 0.041 Shovel blade width m 3.725 Shovel blade height m 1.885 Max. hoisting height m 1.33 Max. digging depth m 0.55 Max. gradient m ＞0.735 Track gauge m 2.25 Caterpillar track pitch m 0.216 Min. swing radius m 3.3 Min. ground clearance m 0.405
Dimension
Unit
SD22S
Overall length
mm
6060
Overall width
4365
Overall height
3782
Ground contact length of track
3480
Track shoe width
910
Weight
Total weight
kg
25700
Power
Engine model
WD12G240E206 / NT855-C280S10
Engine rated power
kW
162
Engine rated speed
r/min
1800
Travel
Travel speed 1st (forward/backward)
km/h
0-3.6/0-4.3
Travel speed 2st (forward/backward)
0-6.5/0-7.7
Main performance
Operation weight
t
25.7
Blade capacity
m3
6.8
Gradeability
0
30
Ground pressure
kpa
0.041
Shovel blade width
m
3.725
Shovel blade height
1.885
Max. hoisting height
1.33
Max. digging depth
0.55
Max. gradient
＞0.735
Track gauge
2.25
Caterpillar track pitch
0.216
Min. swing radius
3.3
Min. ground clearance
0.405
