Quick Details Feature: Bulldozer Condition: New Application: Construction Brand Name: SHANTUI Model Number: SD13 Certification: ISO,CE Rated Loading Capacity: 1.3t Bucket Capacity: 2.33/3.158m3 Dimension: 4492*3185*2950 mm Max. Lifting Load: 1.3t Engine: SC8D143G2B1 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SD13 Overall length mm 4492 Overall width mm 3185 Overall height mm 2950 Ground contact length of track mm 2365 Track shoe width mm 460 Weight Total weight kg 13700 Power Engine model SC8D143G2B1 Engine rated power kW 95.5 Engine rated speed r/min 1900 Travel Travel speed 1st (forward/backward) km/h 3.2/3.9 Travel speed 2st (forward/backward) km/h 5.9/7.1 Main performance Operation weight t 13.7 Blade capacity m3 2.33/3.158 Gradeability 0 30 Ground pressure kpa 0.063 Shovel blade width m 3.185 Shovel blade height m 1.09 Max. hoisting height m 0.93 Max. digging depth m 0.59 Max. gradient m 0.4 Track gauge m 1.88 Caterpillar track pitch m 0.19 Min. swing radius m Min. ground clearance m 0.32

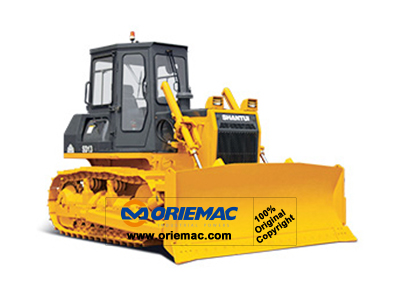

Feature: Bulldozer
Condition: New
Application: Construction
Brand Name: SHANTUI
Model Number: SD13
Certification: ISO,CE
Rated Loading Capacity: 1.3t
Bucket Capacity: 2.33/3.158m3
Dimension: 4492*3185*2950 mm
Max. Lifting Load: 1.3t
Engine: SC8D143G2B1
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit SD13 Overall length mm 4492 Overall width mm 3185 Overall height mm 2950 Ground contact length of track mm 2365 Track shoe width mm 460 Weight Total weight kg 13700 Power Engine model SC8D143G2B1 Engine rated power kW 95.5 Engine rated speed r/min 1900 Travel Travel speed 1st (forward/backward) km/h 3.2/3.9 Travel speed 2st (forward/backward) km/h 5.9/7.1 Main performance Operation weight t 13.7 Blade capacity m3 2.33/3.158 Gradeability 0 30 Ground pressure kpa 0.063 Shovel blade width m 3.185 Shovel blade height m 1.09 Max. hoisting height m 0.93 Max. digging depth m 0.59 Max. gradient m 0.4 Track gauge m 1.88 Caterpillar track pitch m 0.19 Min. swing radius m Min. ground clearance m 0.32
Dimension
Unit
SD13
Overall length
mm
4492
Overall width
3185
Overall height
2950
Ground contact length of track
2365
Track shoe width
460
Weight
Total weight
kg
13700
Power
Engine model
SC8D143G2B1
Engine rated power
kW
95.5
Engine rated speed
r/min
1900
Travel
Travel speed 1st (forward/backward)
km/h
3.2/3.9
Travel speed 2st (forward/backward)
5.9/7.1
Main performance
Operation weight
t
13.7
Blade capacity
m3
2.33/3.158
Gradeability
0
30
Ground pressure
kpa
0.063
Shovel blade width
m
3.185
Shovel blade height
1.09
Max. hoisting height
0.93
Max. digging depth
0.59
Max. gradient
0.4
Track gauge
1.88
Caterpillar track pitch
0.19
Min. swing radius
Min. ground clearance
0.32
