Quick Details
|

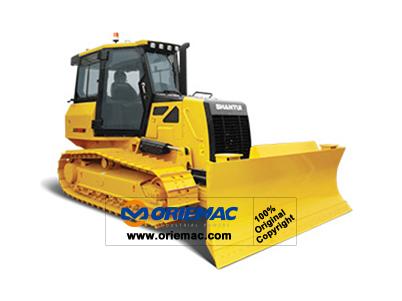

Feature: Bulldozer
|
Condition: New
|
Application: Construction
|
|
Brand Name: SHANTUI
|
Model Number: SD10YS
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 0.95t
|
Bucket Capacity: 2.66m3
|
Dimension: 4478*3200*2825mm
|
|
Max. Lifting Load: 0.95t
|
Engine: QSB4.5
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
7~15 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
SD10YS
|
|
Overall length
|
mm
|
4478
|
|
Overall width
|
mm
|
3200
|
|
Overall height
|
mm
|
2825
|
|
Ground contact length of track
|
mm
|
2360
|
|
Track shoe width
|
mm
|
660
|
|
Weight
|
|
|
|
Total weight
|
kg
|
9500
|
|
Power
|
|
|
|
Engine model
|
|
QSB4.5
|
|
Engine rated power
|
kW
|
80
|
|
Engine rated speed
|
r/min
|
2200
|
|
Travel
|
|
|
|
Travel speed 1st (forward/backward)
|
km/h
|
0-9.0/0-9.0
|
|
Travel speed 2st (forward/backward)
|
km/h
|
0-9.0/0-9.0
|
|
Main performance
|
|
|
|
Operation weight
|
t
|
9.5
|
|
Blade capacity
|
m3
|
2.66
|
|
Gradeability
|
0
|
30
|
|
Ground pressure
|
kpa
|
0.03
|
|
Shovel blade width
|
m
|
3.2
|
|
Shovel blade height
|
m
|
1.02
|
|
Max. hoisting height
|
m
|
0.9
|
|
Max. digging depth
|
m
|
0.45
|
|
Max. gradient
|
m
|
|
|
Track gauge
|
m
|
1.79
|
|
Caterpillar track pitch
|
m
|
0.17145
|
|
Min. swing radius
|
m
|
|
|
Min. ground clearance
|
m
|
|
