Quick Details
|

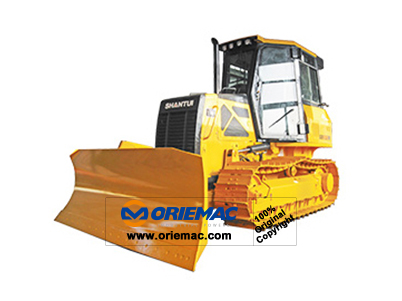

Feature: Bulldozer
|
Condition: New
|
Application: Construction
|
|
Brand Name: SHANTUI
|
Model Number: SD08YE
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 0.8t
|
Bucket Capacity: 1.93m3
|
Dimension: 4252*2680*2775mm
|
|
Max. Lifting Load: 0.8t
|
Engine: QSB3.3
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
7~15 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
SD08YE
|
|
Overall length
|
mm
|
4252
|
|
Overall width
|
mm
|
2680
|
|
Overall height
|
mm
|
2775
|
|
Ground contact length of track
|
mm
|
2270
|
|
Track shoe width
|
mm
|
460
|
|
Weight
|
|
|
|
Total weight
|
kg
|
8020
|
|
Power
|
|
|
|
Engine model
|
|
QSB3.3
|
|
Engine rated power
|
kW
|
59
|
|
Engine rated speed
|
r/min
|
2200
|
|
Travel
|
|
|
|
Travel speed 1st (forward/backward)
|
km/h
|
0-9.0/ 0-9.0
|
|
Travel speed 2st (forward/backward)
|
km/h
|
0-9.0/ 0-9.0
|
|
Main performance
|
|
|
|
Operation weight
|
t
|
8.02
|
|
Blade capacity
|
m3
|
1.93
|
|
Gradeability
|
0
|
30
|
|
Ground pressure
|
kpa
|
0.04
|
|
Shovel blade width
|
m
|
2.68
|
|
Shovel blade height
|
m
|
0.95
|
|
Max. hoisting height
|
m
|
0.75
|
|
Max. digging depth
|
m
|
0.515
|
|
Max. gradient
|
m
|
|
|
Track gauge
|
m
|
1.6
|
|
Caterpillar track pitch
|
m
|
0.1541
|
|
Min. swing radius
|
m
|
|
|
Min. ground clearance
|
m
|
|
