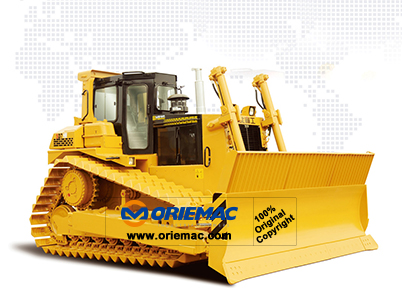

Quick Details Feature: Bulldozer Condition: New Application: Construction Brand Name: HBXG Model Number: SD7HW Certification: ISO,CE Gradeability: 30/250 Bucket Capacity: 13.4m3 Dimension: 5245*4382*3482mm Ground pressure: 51.96kpa Engine: NTA855-C280S10 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SD7HW Overall length mm 5245 Overall width mm 4382 Overall height mm 3482 Ground contact length of track mm Track shoe width mm 560 Weight Total weight kg 25670 Power Engine model NTA855-C280S10 Engine rated power kW 169 Engine rated speed r/min 2100 Travel Travel speed 1st (forward/backward) km/h 0~3.9/0~4.8 Travel speed 2st (forward/backward) km/h 0~6.5/0~8.2 Main performance Operation weight t 25.67 Blade capacity m3 13.4 Gradeability 0 30/25 Ground pressure kpa 51.96 Shovel blade width m 4.382 Shovel blade height m Max. hoisting height m Max. digging depth m 0.635 Max. gradient m Track gauge m Caterpillar track pitch m 0.216 Min. swing radius m Min. ground clearance m 0.484
Feature: Bulldozer
Condition: New
Application: Construction
Brand Name: HBXG
Model Number: SD7HW
Certification: ISO,CE
Gradeability: 30/250
Bucket Capacity: 13.4m3
Dimension: 5245*4382*3482mm
Ground pressure: 51.96kpa
Engine: NTA855-C280S10
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit SD7HW Overall length mm 5245 Overall width mm 4382 Overall height mm 3482 Ground contact length of track mm Track shoe width mm 560 Weight Total weight kg 25670 Power Engine model NTA855-C280S10 Engine rated power kW 169 Engine rated speed r/min 2100 Travel Travel speed 1st (forward/backward) km/h 0~3.9/0~4.8 Travel speed 2st (forward/backward) km/h 0~6.5/0~8.2 Main performance Operation weight t 25.67 Blade capacity m3 13.4 Gradeability 0 30/25 Ground pressure kpa 51.96 Shovel blade width m 4.382 Shovel blade height m Max. hoisting height m Max. digging depth m 0.635 Max. gradient m Track gauge m Caterpillar track pitch m 0.216 Min. swing radius m Min. ground clearance m 0.484
Dimension
Unit
SD7HW
Overall length
mm
5245
Overall width
4382
Overall height
3482
Ground contact length of track
Track shoe width
560
Weight
Total weight
kg
25670
Power
Engine model
NTA855-C280S10
Engine rated power
kW
169
Engine rated speed
r/min
2100
Travel
Travel speed 1st (forward/backward)
km/h
0~3.9/0~4.8
Travel speed 2st (forward/backward)
0~6.5/0~8.2
Main performance
Operation weight
t
25.67
Blade capacity
m3
13.4
Gradeability
0
30/25
Ground pressure
kpa
51.96
Shovel blade width
m
4.382
Shovel blade height
Max. hoisting height
Max. digging depth
0.635
Max. gradient
Track gauge
Caterpillar track pitch
0.216
Min. swing radius
Min. ground clearance
0.484
