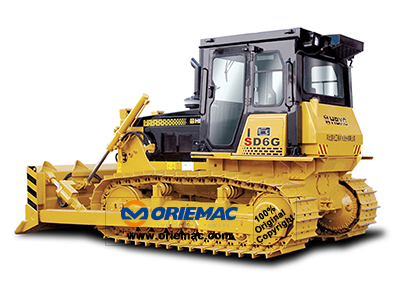

16.5ton Bulldozer SD6G



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: HBXG

Model Number: SD6G

Certification: ISO,CE

Gradeability: 30/250

Bucket Capacity: 4.5m3

Dimension:  5032*3297*3154mm

Ground pressure: 55.8kpa

Engine: C6121ZG55

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD6G

Overall length

mm

5032

Overall width

mm

3297

Overall height

mm

3154

Ground contact length of track

mm


Track shoe width

mm

560

Weight





Total weight

kg

16500

Power





Engine model



C6121ZG55

Engine rated power

kW

119

Engine rated speed

r/min

1900

Travel





Travel speed 1st (forward/backward)

km/h

0~4/0~4.8

Travel speed 2st (forward/backward)

km/h

0~6.9/0~8.4

Main performance





Operation weight

t

16.5

Blade capacity

m3

4.5

Gradeability

0

30/25

Ground pressure

kpa

55.8

Shovel blade width

m

3.297

Shovel blade height

m


Max. hoisting height

m


Max. digging depth

m

0.592

Max. gradient

m


Track gauge

m


Caterpillar track pitch

m

0.203

Min. swing radius

m


Min. ground clearance

m

0.445
