Quick Details
|

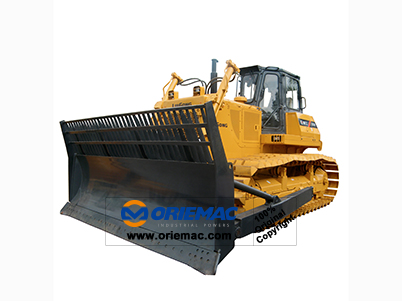

Feature: Bulldozer
|
Condition: New
|
Application: Construction
|
|
Brand Name: LIUGONG
|
Model Number: B230R
|
Certification: ISO,CE
|
|
Gradeability: 300
|
Bucket Capacity: 12.8m3
|
Dimension: 5930*2560*3420mm
|
|
Ground pressure: kpa
|
Engine: NT855-C280S10
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
7~15 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
B230R
|
|
Overall length
|
mm
|
5930
|
|
Overall width
|
mm
|
2560
|
|
Overall height
|
mm
|
3420
|
|
Ground contact length of track
|
mm
|
|
|
Track shoe width
|
mm
|
910
|
|
Weight
|
|
|
|
Total weight
|
kg
|
26280
|
|
Power
|
|
|
|
Engine model
|
|
NT855-C280S10
|
|
Engine rated power
|
kW
|
169
|
|
Engine rated speed
|
r/min
|
2000
|
|
Travel
|
|
|
|
Travel speed 1st (forward/backward)
|
km/h
|
0~3.8/0~4.9
|
|
Travel speed 2st (forward/backward)
|
km/h
|
0~6.8/0~8.5
|
|
Main performance
|
|
|
|
Operation weight
|
t
|
26.28
|
|
Blade capacity
|
m3
|
12.8
|
|
Gradeability
|
0
|
30
|
|
Ground pressure
|
kpa
|
|
|
Shovel blade width
|
m
|
43.655
|
|
Shovel blade height
|
m
|
1.992
|
|
Max. hoisting height
|
m
|
1.3
|
|
Max. digging depth
|
m
|
0.54
|
|
Max. gradient
|
m
|
|
|
Track gauge
|
m
|
|
|
Caterpillar track pitch
|
m
|
|
|
Min. swing radius
|
m
|
3.5
|
|
Min. ground clearance
|
m
|
0.405
|
