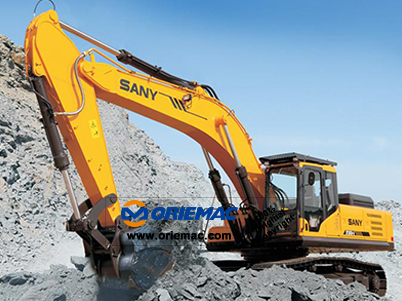

38.5ton Excavator SY385H-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY385H-9

Certification: ISO,CE

Rated Loading Capacity: 38.5t

Bucket Capacity: 1.8~2.0m3

Dimension:  11700*3360*3740mm

Max. Lifting Load: 38.5t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY385H-9

Overall length

mm

11700

Overall width

mm

3360

Overall height

mm

3740

Track shoe length

mm

5270

Track shoe width

mm



Weight





Total weight

kg

38500

Power





Engine model





Engine rated power

kW

250

Engine rated speed

r/min

2000

Travel





Travel speed

km/h

5.3/3.4

Main performance





Rated load

t

38.5

Bucket capacity

m3

1.8~2.0

Gradeability

0

70

Ground pressure

kpa

66.2

Bucket digging force

KN

240

Arm digging force

KN

190

Max. tractive force

KN



Max. dumping clearance

m

7.015

Max. digging depth

m

7.05

Max. digging radius

m

10.965

Min. swing radius

m

4.81

Steering speed

r/min

8.3

Track gauge

m

2.75

Caterpillar wheelbase

m



Min. ground clearance

m

0.6
