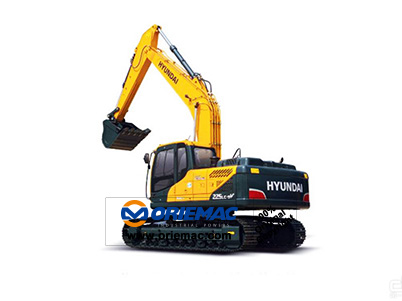

22.57ton Excavator R225LC-9V



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: HYUNDAI

Model Number: R225LC-9V

Certification: ISO,CE

Rated Loading Capacity: 22.57t

Bucket Capacity: 1.05m3

Dimension:  9550*2990*3080mm

Max. Lifting Load: 22.57t

Engine: B5.9-C

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

R225LC-9V

Overall length (Transportation)

mm

9550

Overall width (Transportation/operation)

mm

2990

Overall height (Transportation)

mm

3080

Track shoe length

mm



Track shoe width

mm



Weight





Total weight

kg

22570

Power





Engine model



B5.9-C

Engine rated power

kW

112

Engine rated speed

r/min

1950

Travel





Travel speed

km/h

5.3/3.4

Main performance





Rated load

t

22.57

Bucket capacity

m3

1.05

Gradeability

0

70

Ground pressure

kpa

0.48

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

6.78

Max. digging depth

m

6.73

Max. digging radius

m

9.98

Min. swing radius

m

3.74

Steering speed

r/min



Track gauge

m



Caterpillar wheelbase

m



Min. ground clearance

m
