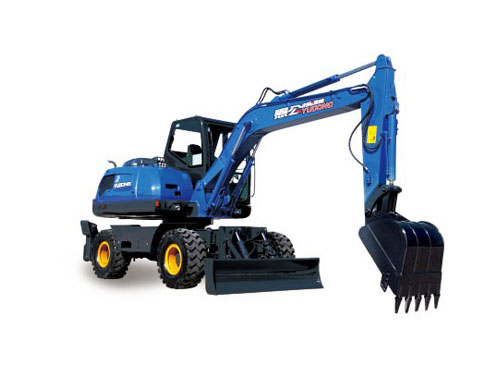

8.8ton Excavator WYL85X4-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: YUGONG

Model Number: WYL85X4-9

Certification: ISO,CE

Rated Loading Capacity: 8.8t

Bucket Capacity: 0.3m3

Dimension:  6400*2205*3025mm

Max. Lifting Load: 8.8t

Engine: YC4D80

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Blue

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

WYL85X4-9

Overall length (Transportation)

mm

6400

Overall width (Transportation)

mm

2205

Overall height (Transportation)

mm

3025

Weight





Total weight

kg

8880

Power





Engine model



YC4D80

Engine rated power

kW

56

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

27

Main performance





Rated load

t

8.8

Bucket capacity

m3

0.3

Gradeability

0



Hydraulic system pressure

Mpa

28

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

5.115

Max. digging depth

m

4.065

Max. digging radius

m

7.23

Max. digging height

m

7.235

Back-end swing radius

m

1.935

Steering speed

r/min

11

Wheel tread

m

1.86

Wheel base

m

2.2

Tire models



205/70R16

Min. ground clearance

m
