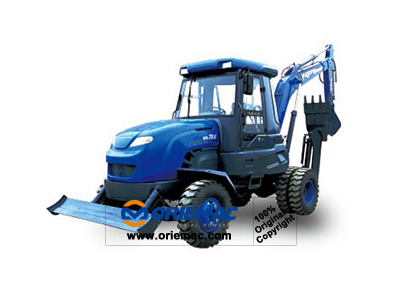

5.0ton Excavator WYL4.8



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: YUGONG

Model Number: WYL4.8

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 0.25m3

Dimension:  7850*2360*2810mm

Max. Lifting Load: 5.0t

Engine: YTR4105

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Blue

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

WYL4.8

Overall length (Transportation)

mm

7850

Overall width (Transportation)

mm

2360

Overall height (Transportation)

mm

2810

Weight





Total weight

kg

5000

Power





Engine model



YTR4105

Engine rated power

kW

51.5

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

40

Main performance





Rated load

t

5.0

Bucket capacity

m3

0.25

Gradeability

0



Hydraulic system pressure

Mpa

20

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

4.35

Max. digging depth

m

3.5

Max. digging radius

m

5.88

Max. digging height

m

6.31

Back-end swing radius

m

8

Steering speed

r/min



Wheel tread

m

1.68

Wheel base

m

2.82

Tire models



9.00-16

Min. ground clearance

m
