Quick Details
|

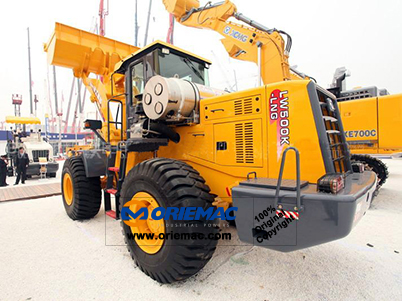

Feature: Wheel Loader
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: LW500K-LNG
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 5.0t
|
Bucket Capacity: 3.0m3
|
Dimension: 8225×3016×3700mm
|
|
Max. Lifting Load: 5.0t
|
Engine: SC9DT280G2
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
7~15 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension |
Unit |
LW500K-LNG |
|
Overall length |
mm |
8225 |
|
Overall width |
mm |
3016 |
|
Overall height |
mm> |
3700 |
|
Weight |
|
|
|
Total weight |
kg |
17600 |
|
Power |
|
|
|
Engine model |
|
SC9DT280G2 |
|
Engine rated power |
kW |
170 |
|
Engine rated speed |
r/min |
2000 |
|
Travel |
|
|
|
Travel speed 1st (forward/backward) |
km/h |
0~11.5/16.5 |
|
Travel?speed 2st (forward/backward) |
km/h |
0~38 |
|
Main performance |
|
|
|
Rated load |
t |
5.0 |
|
Bucket capacity |
m3 |
3.0 |
|
Dumping clearance |
m |
3.09 |
|
Dumping reach |
m |
1.13 |
|
Max. breakout force |
KN |
175 |
|
Max. traction force |
KN |
170 |
|
Aticulation angle |
0 |
38 |
|
Gradeability |
0 |
30 |
|
Wheel base |
m |
3.3 |
|
Tread |
m |
2.25 |
|
Tyre size |
m |
23.5-25 |
|
Working speed |
|
|
|
Hydraulic cycle time – raise |
s |
≤6.5 |
|
Total hydraulic cycle time |
s |
≤11 |
