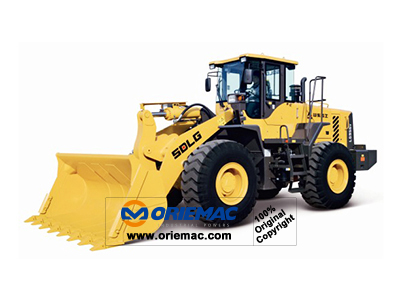

5.0ton Wheel Loader LG956V



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: SDLG

Model Number: LG956V

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 2.7~2.8m3

Dimension: 8040×3060×3382mm

Max. Lifting Load: 5.0t

Engine: WD10G220E22

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

LG956V

Overall length

mm

8040

Overall width

mm

3060

Overall height

mm>

3382

Weight





Total weight

kg

172000~17250

Power





Engine model



WD10G220E22

Engine rated power

kW

162

Engine rated speed

r/min

2200

Travel





Travel speed 1st (forward/backward)

km/h

0~6.5/0~6.6

Travel?speed 2st (forward/backward)

km/h

0~12.3/0~12.4

Main performance





Rated load

t

5.0

Bucket capacity

m3

2.7~2.8

Dumping clearance

m

3.19~3.5

Dumping reach

m

1.1~1.16

Max. breakout force

KN

≥180

Max. traction force

KN

≥160

Articulation angle

0

45

Gradeability

0

30

Wheel base

m

3.2

Tread

m

2.19

Tyre size

m



Min. ground clearance

m

0.457

Min. turning radius

m

6.036

Working speed





Hydraulic cycle time – raise

s



Total hydraulic cycle time

s

11
