Quick Details Feature: Wheel Loader Condition: New Application: Construction Brand Name: CHENGGONG Model Number: CG958H Certification: ISO,CE Rated Loading Capacity: 5.0t Bucket Capacity: 2.5-3.6m3 Dimension: 8180×3000×3540mm Max. Lifting Load: 5.0t Engine: QSB6.7 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit CG958H Overall length mm 8180 Overall width mm 3000 Overall height mm 3540 Weight Total weight kg 17700 Power Engine model QSB6.7 Engine rated power kW 164 Engine rated speed r/min 2200 Travel Max. travel speed km/h 36 Main performance Rated load t 5.0 Bucket capacity m3 2.5-3.6 Dumping clearance m 3.196 Dumping reach m 1.039 Max. breakout force KN 180 Max. traction force KN Steering angle 0 Gradeability 0 Wheel base m 3.36 Tread m Tyre size m Min. ground clearance m Min. turning radius m 6.4 Working speed Boom cycle time – raise s 6.5 Total hydraulic cycle time s 11.8

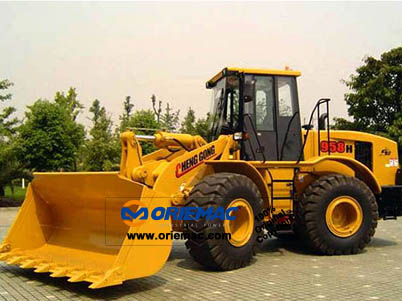

Feature: Wheel Loader
Condition: New
Application: Construction
Brand Name: CHENGGONG
Model Number: CG958H
Certification: ISO,CE
Rated Loading Capacity: 5.0t
Bucket Capacity: 2.5-3.6m3
Dimension: 8180×3000×3540mm
Max. Lifting Load: 5.0t
Engine: QSB6.7
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit CG958H Overall length mm 8180 Overall width mm 3000 Overall height mm 3540 Weight Total weight kg 17700 Power Engine model QSB6.7 Engine rated power kW 164 Engine rated speed r/min 2200 Travel Max. travel speed km/h 36 Main performance Rated load t 5.0 Bucket capacity m3 2.5-3.6 Dumping clearance m 3.196 Dumping reach m 1.039 Max. breakout force KN 180 Max. traction force KN Steering angle 0 Gradeability 0 Wheel base m 3.36 Tread m Tyre size m Min. ground clearance m Min. turning radius m 6.4 Working speed Boom cycle time – raise s 6.5 Total hydraulic cycle time s 11.8
Dimension
Unit
CG958H
Overall length
mm
8180
Overall width
3000
Overall height
3540
Weight
Total weight
kg
17700
Power
Engine model
QSB6.7
Engine rated power
kW
164
Engine rated speed
r/min
2200
Travel
Max. travel speed
km/h
36
Main performance
Rated load
t
5.0
Bucket capacity
m3
2.5-3.6
Dumping clearance
m
3.196
Dumping reach
1.039
Max. breakout force
KN
180
Max. traction force
Steering angle
0
Gradeability
Wheel base
3.36
Tread
Tyre size
Min. ground clearance
Min. turning radius
6.4
Working speed
Boom cycle time – raise
s
6.5
Total hydraulic cycle time
11.8
