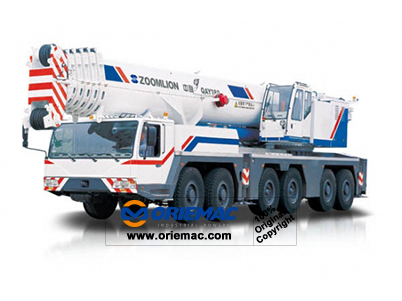

180ton All Terrain Crane QAY180V



Quick Details

Feature: All Terrain Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QAY180V

Certification: ISO,CE

Rated Loading Capacity: 180t

Rated Lifting Moment: 6480kN.M

Dimension: 16560×3000×3950mm

Max. Lifting Load: 180t

Max. Lifting Height: 62.6m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 8.8/8.8m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QAY180V

Overall length

mm

16560

Overall width

mm

3000

Overall height

mm

3950

Weight





Total weight in travel

kg

70585

Front axle load

kg

11764

Rear axle load

kg

11764

Power





Engine model



OM502LA

Engine rated power

kW/(r/min)

420/1800

Engine rated torque

N.m/(r/min)

2700/1080

Travel





Max. travel speed

km/h

72

Min. turning diameter

m

24

Min. ground clearance

mm

305

Approach angle

°



Departure angle

°



Max. grade ability

%

50

Fuel consumption for 100km

L

85

Main performance





Max. rated total lifting capacity

t

180

Min. rated working radius

m

Turning radius at turntable tail

m



Max. lifting torque

kN.m

6480

Base boom

m

13.8

Fully extended boom

m

61

Fully extended boom+ jib

m

79

Longitudinal outrigger span

m

8.8

Lateral outrigger span

m

8.8

Working speed





Boom luffing time

s

80

Boomfull extension time

s

600

Max. swing speed

r/min

≤1.5

Max. speed of main winch (single rope) (no load)

m/min

128

Max. speed of aux. winch (single rope) (no load)

m/min

70
