Quick Details Feature: Rough Terrain Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: RT750 Certification: ISO,CE Rated Loading Capacity: 75t Rated Lifting Moment: 2250kN.M Dimension: 14897×3395×3840mm Max. Lifting Load: 75t Max. Lifting Height: 41m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 7.38/7.3m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit RT750 Overall length mm 14897 Overall width mm 3395 Overall height mm 3840 Weight Total weight in travel kg 50000 Front axle load kg 26540 Rear axle load kg 23460 Power Engine model Engine rated power kW/(r/min) Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 41 Min. turning diameter m Min. ground clearance mm Approach angle ° Departure angle ° Max. grade ability % 125 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 75 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 2250 Base boom m 12.385 Fully extended boom m 38.5 Fully extended boom+ jib m 55.5 Longitudinal outrigger span m 7.38 Lateral outrigger span m 7.3 Working speed Boom luffing time s 110 Boomfull extension time s 110 Max. swing speed r/min 0~2 Max. speed of main winch (single rope) (no load) m/min 125 Max. speed of aux. winch (single rope) (no load) m/min

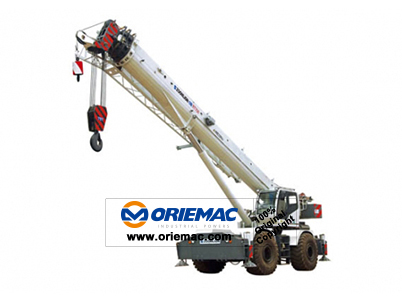

Feature: Rough Terrain Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: RT750
Certification: ISO,CE
Rated Loading Capacity: 75t
Rated Lifting Moment: 2250kN.M
Dimension: 14897×3395×3840mm
Max. Lifting Load: 75t
Max. Lifting Height: 41m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 7.38/7.3m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit RT750 Overall length mm 14897 Overall width mm 3395 Overall height mm 3840 Weight Total weight in travel kg 50000 Front axle load kg 26540 Rear axle load kg 23460 Power Engine model Engine rated power kW/(r/min) Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 41 Min. turning diameter m Min. ground clearance mm Approach angle ° Departure angle ° Max. grade ability % 125 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 75 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 2250 Base boom m 12.385 Fully extended boom m 38.5 Fully extended boom+ jib m 55.5 Longitudinal outrigger span m 7.38 Lateral outrigger span m 7.3 Working speed Boom luffing time s 110 Boomfull extension time s 110 Max. swing speed r/min 0~2 Max. speed of main winch (single rope) (no load) m/min 125 Max. speed of aux. winch (single rope) (no load) m/min
Dimension
Unit
RT750
Overall length
mm
14897
Overall width
3395
Overall height
3840
Weight
Total weight in travel
kg
50000
Front axle load
26540
Rear axle load
23460
Power
Engine model
Engine rated power
kW/(r/min)
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
41
Min. turning diameter
m
Min. ground clearance
Approach angle
°
Departure angle
Max. grade ability
%
125
Fuel consumption for 100km
L
Main performance
Max. rated total lifting capacity
t
75
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
2250
Base boom
12.385
Fully extended boom
38.5
Fully extended boom+ jib
55.5
Longitudinal outrigger span
7.38
Lateral outrigger span
7.3
Working speed
Boom luffing time
s
110
Boomfull extension time
Max. swing speed
r/min
0~2
Max. speed of main winch (single rope) (no load)
m/min
Max. speed of aux. winch (single rope) (no load)
