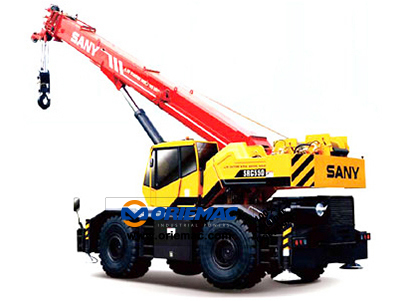

Quick Details Feature: Rough Terrain Crane Condition: New Application: Construction Brand Name: SANY Model Number: SRC550C Certification: ISO,CE Rated Loading Capacity: 55t Rated Lifting Moment: 2009kN.M Dimension: 14300×3300×3760mm Max. Lifting Load: 55t Max. Lifting Height: 44.3m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 7.2/7.2m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SRC550C Overall length mm 14300 Overall width mm 3300 Overall height mm 3760 Weight Total weight in travel kg 44980 Front axle load kg 24800 Rear axle load kg 20180 Power Engine model Engine rated power kW/(r/min) 198/2500 Engine rated torque N.m/(r/min) 970/1500 Travel Max. travel speed km/h 40 Min. turning diameter m 13.4 Min. ground clearance mm 500 Approach angle ° 23 Departure angle ° 20 Max. grade ability % 75 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m Max. lifting torque kN.m 2009 Base boom m 11.5 Fully extended boom m 43 Fully extended boom+ jib m 59 Longitudinal outrigger span m 7.2 Lateral outrigger span m 7.2 Working speed Boom luffing time s 55 Boomfull extension time s 120 Max. swing speed r/min 2.6 Max. speed of main winch (single rope) (no load) m/min 150 Max. speed of aux. winch (single rope) (no load) m/min 150
Feature: Rough Terrain Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SRC550C
Certification: ISO,CE
Rated Loading Capacity: 55t
Rated Lifting Moment: 2009kN.M
Dimension: 14300×3300×3760mm
Max. Lifting Load: 55t
Max. Lifting Height: 44.3m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 7.2/7.2m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SRC550C Overall length mm 14300 Overall width mm 3300 Overall height mm 3760 Weight Total weight in travel kg 44980 Front axle load kg 24800 Rear axle load kg 20180 Power Engine model Engine rated power kW/(r/min) 198/2500 Engine rated torque N.m/(r/min) 970/1500 Travel Max. travel speed km/h 40 Min. turning diameter m 13.4 Min. ground clearance mm 500 Approach angle ° 23 Departure angle ° 20 Max. grade ability % 75 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m Max. lifting torque kN.m 2009 Base boom m 11.5 Fully extended boom m 43 Fully extended boom+ jib m 59 Longitudinal outrigger span m 7.2 Lateral outrigger span m 7.2 Working speed Boom luffing time s 55 Boomfull extension time s 120 Max. swing speed r/min 2.6 Max. speed of main winch (single rope) (no load) m/min 150 Max. speed of aux. winch (single rope) (no load) m/min 150
Dimension
Unit
SRC550C
Overall length
mm
14300
Overall width
3300
Overall height
3760
Weight
Total weight in travel
kg
44980
Front axle load
24800
Rear axle load
20180
Power
Engine model
Engine rated power
kW/(r/min)
198/2500
Engine rated torque
N.m/(r/min)
970/1500
Travel
Max. travel speed
km/h
40
Min. turning diameter
m
13.4
Min. ground clearance
500
Approach angle
°
23
Departure angle
20
Max. grade ability
%
75
Fuel consumption for 100km
L
Main performance
Max. rated total lifting capacity
t
55
Min. rated working radius
3
Turning radius at turntable tail
Max. lifting torque
kN.m
2009
Base boom
11.5
Fully extended boom
43
Fully extended boom+ jib
59
Longitudinal outrigger span
7.2
Lateral outrigger span
Working speed
Boom luffing time
s
Boomfull extension time
120
Max. swing speed
r/min
2.6
Max. speed of main winch (single rope) (no load)
m/min
150
Max. speed of aux. winch (single rope) (no load)
