Quick Details Feature: Crawler Crane Condition: New Application: Construction Brand Name: XCMG Model Number: QUY55 Certification: ISO,CE Rated Loading Capacity: 55t Rated Lifting Moment: 1994.3kN.M Dimension: 11500*3450*3400mm Max. Lifting Load: 55t Max. Lifting Height: 67.25m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QUY55 Overall length mm 11500 Overall width mm 3450 Overall height mm 3400 Weight Total mass (main hook block, 13m boom) t 51 Max. weight of base machine for transport t 31 Power Engine model Engine rated power kW/(r/min) 115 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 1.3 Max. grade ability % 30 Mean ground pressure MPa 0.069 Main performance Max. rated total lifting capacity t 55 Max. lifting torque kN.m 1994.3 Base boom m 13 Fully extended boom m 52 Fully extended boom+ jib m 67.25 Boom elevating angle ° -3～80 Working speed Max. swing speed r/min 1.5 Max. single rope hoist speed (no-load, fifth floor) m/min 121 Max. single rope boom luffer speed (layer 1) m/min 52

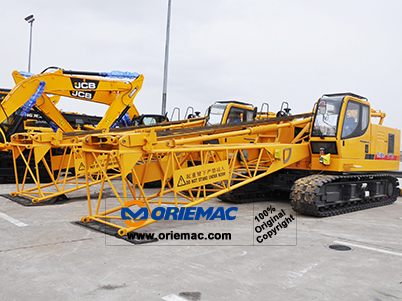

Feature: Crawler Crane
Condition: New
Application: Construction
Brand Name: XCMG
Model Number: QUY55
Certification: ISO,CE
Rated Loading Capacity: 55t
Rated Lifting Moment: 1994.3kN.M
Dimension: 11500*3450*3400mm
Max. Lifting Load: 55t
Max. Lifting Height: 67.25m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QUY55 Overall length mm 11500 Overall width mm 3450 Overall height mm 3400 Weight Total mass (main hook block, 13m boom) t 51 Max. weight of base machine for transport t 31 Power Engine model Engine rated power kW/(r/min) 115 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 1.3 Max. grade ability % 30 Mean ground pressure MPa 0.069 Main performance Max. rated total lifting capacity t 55 Max. lifting torque kN.m 1994.3 Base boom m 13 Fully extended boom m 52 Fully extended boom+ jib m 67.25 Boom elevating angle ° -3～80 Working speed Max. swing speed r/min 1.5 Max. single rope hoist speed (no-load, fifth floor) m/min 121 Max. single rope boom luffer speed (layer 1) m/min 52
Dimension
Unit
QUY55
Overall length
mm
11500
Overall width
3450
Overall height
3400
Weight
Total mass (main hook block, 13m boom)
t
51
Max. weight of base machine for transport
31
Power
Engine model
Engine rated power
kW/(r/min)
115
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
1.3
Max. grade ability
%
30
Mean ground pressure
MPa
0.069
Main performance
Max. rated total lifting capacity
55
Max. lifting torque
kN.m
1994.3
Base boom
m
13
Fully extended boom
52
Fully extended boom+ jib
67.25
Boom elevating angle
°
-3～80
Working speed
Max. swing speed
r/min
1.5
Max. single rope hoist speed (no-load, fifth floor)
m/min
121
Max. single rope boom luffer speed (layer 1)
