Quick Details Feature: Crawler Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: ZTM300 Certification: ISO,CE Rated Loading Capacity: 30t Rated Lifting Moment: 3000kN.M Dimension: 2540*4900*760mm Max. Lifting Load: 30t Max. Lifting Height: 25m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 19 After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit ZTM300 Overall length mm 2540 Overall width mm 4900 Overall height mm 760 Weight Total mass (with basic boom) t 49.5 Maximum lifting weight of fixed jib t 15 Power Engine model Engine rated power kW/(r/min) 140/1900 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 0~1.7 Max. grade ability % 30 Mean ground pressure MPa 0.066 Main performance Max. rated total lifting capacity t 30 Max. lifting torque kN.m 3000 Base boom m 19 Fully extended boom m 25 Fully extended boom+ jib m Boom elevating angle ° Working speed Max. swing speed r/min 0~2.6 Max. single rope hoist speed m/min 117 Max. single rope boom luffer speed m/min 60

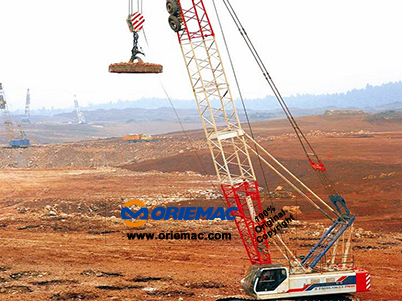

Feature: Crawler Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: ZTM300
Certification: ISO,CE
Rated Loading Capacity: 30t
Rated Lifting Moment: 3000kN.M
Dimension: 2540*4900*760mm
Max. Lifting Load: 30t
Max. Lifting Height: 25m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 19
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit ZTM300 Overall length mm 2540 Overall width mm 4900 Overall height mm 760 Weight Total mass (with basic boom) t 49.5 Maximum lifting weight of fixed jib t 15 Power Engine model Engine rated power kW/(r/min) 140/1900 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 0~1.7 Max. grade ability % 30 Mean ground pressure MPa 0.066 Main performance Max. rated total lifting capacity t 30 Max. lifting torque kN.m 3000 Base boom m 19 Fully extended boom m 25 Fully extended boom+ jib m Boom elevating angle ° Working speed Max. swing speed r/min 0~2.6 Max. single rope hoist speed m/min 117 Max. single rope boom luffer speed m/min 60
Dimension
Unit
ZTM300
Overall length
mm
2540
Overall width
4900
Overall height
760
Weight
Total mass (with basic boom)
t
49.5
Maximum lifting weight of fixed jib
15
Power
Engine model
Engine rated power
kW/(r/min)
140/1900
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
0~1.7
Max. grade ability
%
30
Mean ground pressure
MPa
0.066
Main performance
Max. rated total lifting capacity
Max. lifting torque
kN.m
3000
Base boom
m
19
Fully extended boom
25
Fully extended boom+ jib
Boom elevating angle
°
Working speed
Max. swing speed
r/min
0~2.6
Max. single rope hoist speed
m/min
117
Max. single rope boom luffer speed
60
