Quick Details Feature: Crawler Crane Condition: New Application: Construction Brand Name: SANY Model Number: SCC500E Certification: ISO,CE Rated Loading Capacity: 50t Rated Lifting Moment: 1813kN.M Dimension: 7110*3300*3260mm Max. Lifting Load: 50t Max. Lifting Height: 52m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SCC500E Overall length mm 7110 Overall width mm 3300 Overall height mm 3260 Weight Total mass (with basic boom) t 49 Maximum lifting weight of fixed jib t 17.5 Power Engine model Engine rated power kW/(r/min) 114/2200 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 0~1.39 Max. grade ability % 40 Mean ground pressure MPa 0.061 Main performance Max. rated total lifting capacity t 50 Max. lifting torque kN.m 1813 Base boom m 22 Fully extended boom m 43 Fully extended boom+ jib m 58.25 Boom elevating angle ° 30-80 Working speed Max. swing speed r/min 2.7 Max. single rope hoist speed m/min 0~120 Max. single rope boom luffer speed m/min 0~90

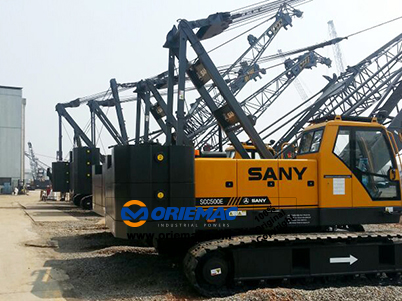

Feature: Crawler Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SCC500E
Certification: ISO,CE
Rated Loading Capacity: 50t
Rated Lifting Moment: 1813kN.M
Dimension: 7110*3300*3260mm
Max. Lifting Load: 50t
Max. Lifting Height: 52m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SCC500E Overall length mm 7110 Overall width mm 3300 Overall height mm 3260 Weight Total mass (with basic boom) t 49 Maximum lifting weight of fixed jib t 17.5 Power Engine model Engine rated power kW/(r/min) 114/2200 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 0~1.39 Max. grade ability % 40 Mean ground pressure MPa 0.061 Main performance Max. rated total lifting capacity t 50 Max. lifting torque kN.m 1813 Base boom m 22 Fully extended boom m 43 Fully extended boom+ jib m 58.25 Boom elevating angle ° 30-80 Working speed Max. swing speed r/min 2.7 Max. single rope hoist speed m/min 0~120 Max. single rope boom luffer speed m/min 0~90
Dimension
Unit
SCC500E
Overall length
mm
7110
Overall width
3300
Overall height
3260
Weight
Total mass (with basic boom)
t
49
Maximum lifting weight of fixed jib
17.5
Power
Engine model
Engine rated power
kW/(r/min)
114/2200
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
0~1.39
Max. grade ability
%
40
Mean ground pressure
MPa
0.061
Main performance
Max. rated total lifting capacity
50
Max. lifting torque
kN.m
1813
Base boom
m
22
Fully extended boom
43
Fully extended boom+ jib
58.25
Boom elevating angle
°
30-80
Working speed
Max. swing speed
r/min
2.7
Max. single rope hoist speed
m/min
0~120
Max. single rope boom luffer speed
0~90
