Quick Details
|

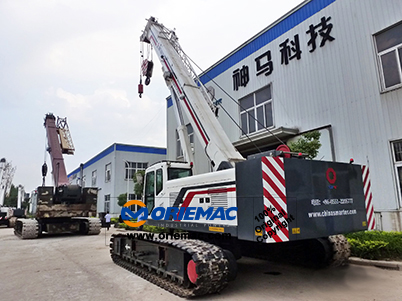

Feature: Crawler Crane
|
Condition: New
|
Application: Construction
|
|
Brand Name: SMARTER
|
Model Number: SMQ1000A
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 100t
|
Rated Lifting Moment: 3381kN.M
|
Dimension: mm
|
|
Max. Lifting Load: 100t
|
Max. Lifting Height: 48m
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: White
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
SMQ1000A
|
|
Overall length
|
mm
|
|
|
Overall width
|
mm
|
|
|
Overall height
|
mm
|
|
|
Weight
|
|
|
|
Total mass (with basic boom)
|
t
|
125
|
|
Balance weight
|
t
|
32
|
|
Power
|
|
|
|
Engine model
|
|
LSK310.31
|
|
Engine rated power
|
kW/(r/min)
|
228/2200
|
|
Engine rated torque
|
N.m/(r/min)
|
|
|
Travel
|
|
|
|
Max. travel speed
|
km/h
|
0.8/1.85
|
|
Max. grade ability
|
%
|
40
|
|
Mean ground pressure
|
MPa
|
|
|
Main performance
|
|
|
|
Max. rated total lifting capacity
|
t
|
100
|
|
Max. lifting torque
|
kN.m
|
3381
|
|
Base boom
|
m
|
12.8
|
|
Fully extended boom
|
m
|
48
|
|
Fully extended boom+ jib
|
m
|
59.2
|
|
Boom elevating angle
|
°
|
-2~80
|
|
Working speed
|
|
|
|
Max. swing speed
|
r/min
|
1.8
|
|
Max. single rope hoist speed
|
m/min
|
112.5
|
|
Max. single rope boom luffer speed
|
m/min
|
|
