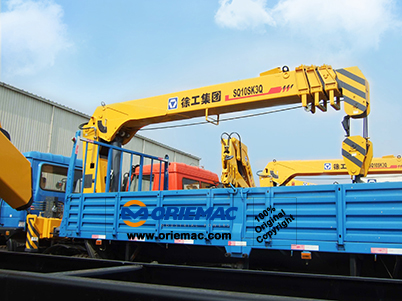

10 Tons Truck Mounted Cranes SQ10SK3Q



Quick Details

Feature: Truck Mounted Crane

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: SQ10SK3Q

Certification: ISO,CE

Rated Loading Capacity: 10t

Rated Lifting Moment: 245kN.M

Span: 11.5m

Max. Lifting Load: 10t

Max. Lifting Height: 13.5m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

20 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Main performance

Unit

SQ10SK3Q

Crane Weight

kg

3765

Max. rated total lifting capacity

kg

10000

Max. lifting torque

kN.m

245

Recommend Power

kw

30

Max Oil Flow of Hydraulic System

L/min

63

Max Pressure of Hydraulic System

MPa

26

Oil Tank Capacity

L

160

Rotation Angle

360°All Rotation

Installation Space

mm

1150

Choice of Chassis



DFL1250A9, BJ5253ZKPJJ, etc.

Lifting capability diagram





Working radius

m

2.5/4.5/7/9/12

Lifting capacity

kg

10000/5500/3200/2300/1500
